Aspen Mini orange Pump

Upgrade your air conditioning installations with the Aspen Pumps Mini Orange Condensate Removal Pump. Recognized globally as the world’s best-selling mini pump, it delivers unrivalled reliability and exceptional performance. Designed for maximum installation flexibility, the Mini Orange can be installed above a false ceiling, behind wall-mounted evaporators, or within plastic conduit, making it an incredibly versatile choice for any technician.

A standout feature of the Mini Orange is the inclusion of a submersible secondary reservoir, allowing you to drop it directly into the condensate tray. Combined with its ultra-quiet operation at just 21 dB(A), this pump does its heavy lifting silently, ensuring that the end-users experience perfectly conditioned air without any distracting mechanical noise.

Key Features & Advantages:

• World-Renowned Reliability: The go-to choice for professionals globally due to its consistent performance and durability.

• Submersible Secondary Reservoir: Included in the box for added installation flexibility, allowing direct placement into the drain pan.

• Plug & Play Setup: Designed for rapid and hassle-free electrical connection.

• Whisper-Quiet Operation: Runs incredibly quietly at 21 dB(A) at 1 meter.

• Built-in Safety: Fully potted with thermal protection, an anti-siphon device to stop backflow, and a 3.0A normally closed safety switch to prevent flooding.

Suitability & Applications: This pump is highly recommended for cooling systems up to 16kW / 54,000 Btu/h. It is perfectly suited for:

• High wall mini-split systems

• Ducted units

• Floor standing & Chassis units

• Perfect for… Smaller commercial and domestic units.

Technical Specifications:

• Max. Flow Rate: 12 L/h @ 0 head

• Max. Recommended Head: 10 meters

• Max. Suction Lift: 2 meters

• Dimensions (Pump): 116mm (L) x 39mm (W) x 51mm (H)

• Weight: 0.25 kg

• Power Supply: 230 VAC, 0.11A, 16W, 50/60Hz

• Discharge Tube: 6mm ID

• IP Protection: IP21

• Self Priming: Yes

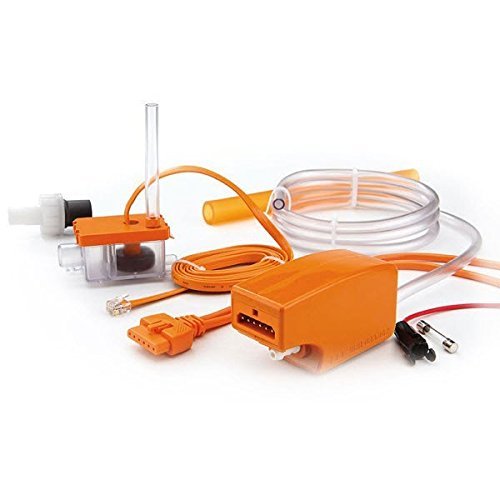

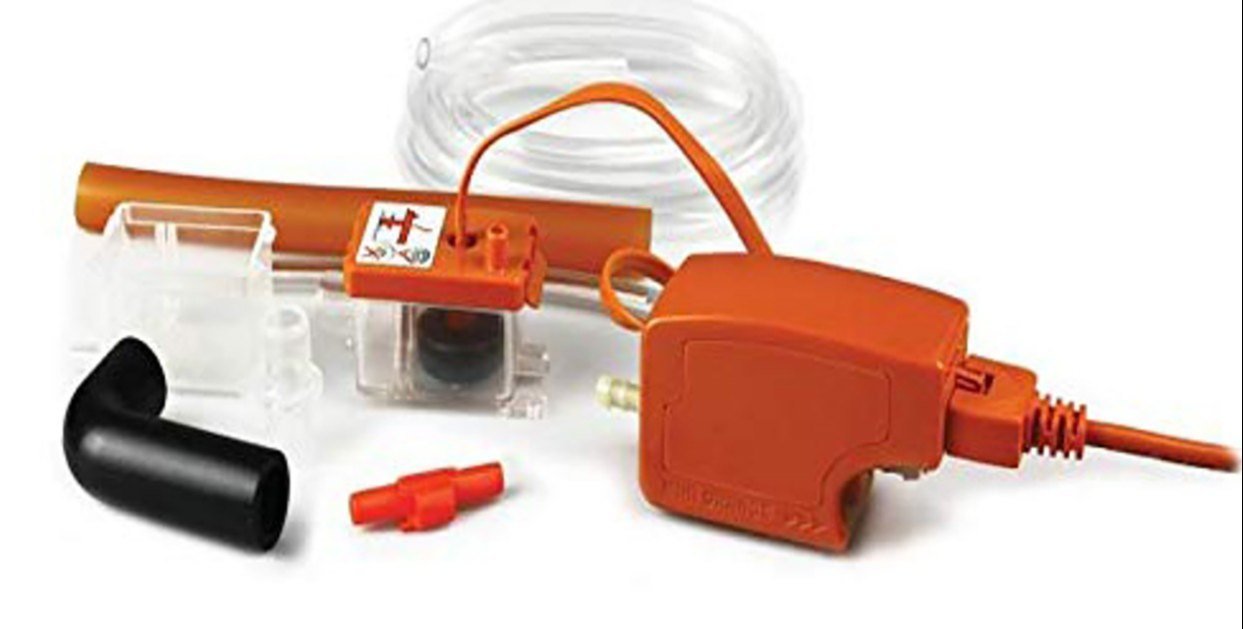

In the Box: Your comprehensive kit includes the Mini Orange pump, a 1.5m Plug & Play power cable, a 16mm inline filter, the primary reservoir, a reservoir lid with a 1.5m sensor cable, a submersible reservoir, an anti-siphon device, a float & filter, a 1.5m suction tube (6mm ID), a 220mm Orange inlet hose (14mm ID), a 150mm Vinyl breather tube (6mm ID), a drain connector kit, a fixing kit, and the installation manual.
