Aspen Mini Tank Pump

Maximize your installation flexibility with the new and improved Aspen Pumps Mini Tank Condensate Removal Pump. Utilizing advanced piston technology, this unit is engineered to be a compact, highly powerful, and multifunctional tank pump. Whether you are dealing with challenging commercial layouts or standard residential setups, the Mini Tank adapts to your environment, not the other way around.

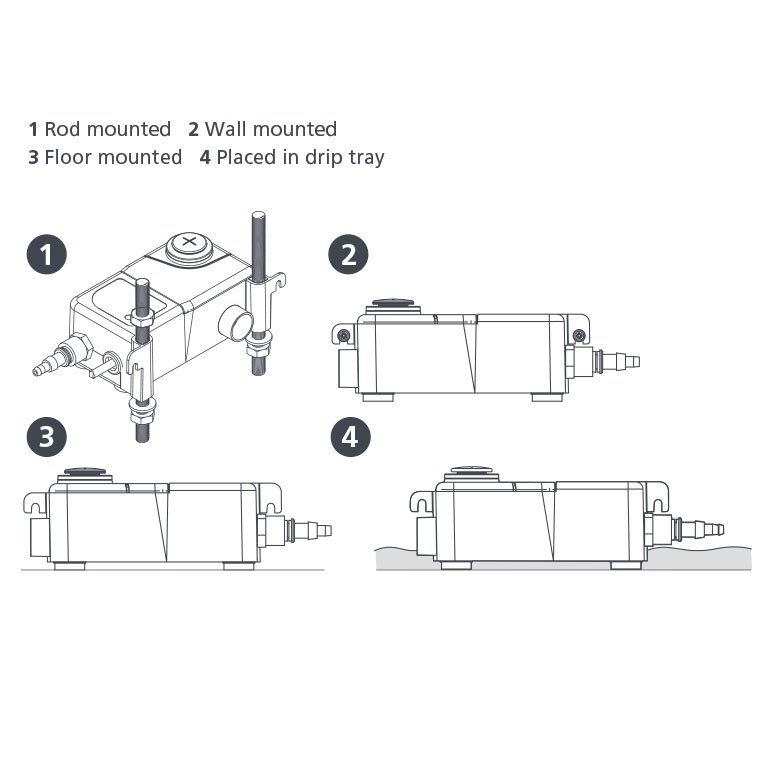

The standout feature of the Mini Tank is its incredible installation versatility. It is designed with four unique ways to install: it can be wall-mounted, floor-mounted, suspended securely on an M8 or M10 rod, or even placed directly into the drain pan. Despite its compact and discreet footprint, it delivers robust performance, efficiently handling water removal while maintaining an IP65 protection rating for superior durability against dust and water ingress.

Key Features & Advantages:

• Unmatched Versatility: Four different installation options (wall, floor, in-pan, or suspended) to suit any HVAC environment.

• Advanced Piston Technology: Delivers powerful, reliable, and consistent water extraction.

• Compact & Discreet: Easily fits into tight spaces or directly inside the drip tray.

• High Performance: Achieves a maximum flow rate of 35 L/h and an impressive 15-meter maximum recommended head.

• Built-in Safety: Fully potted design with an IP65 rating, integrated thermal protection, and a 3.0A normally closed safety switch.

Suitability & Applications: This pump is highly recommended for systems up to 46kW / 157,000 Btu/h. It is perfectly suited for:

• Ducted units

• Cassette units

• Perfect for… Situations requiring ultimate installation versatility.

Technical Specifications:

• Max. Flow Rate: 35 L/h @ 0 head

• Max. Recommended Head: 15 meters

• Tank Capacity: 0.24 Litres

• Noise Level: 35 dB(A) @ 1 meter

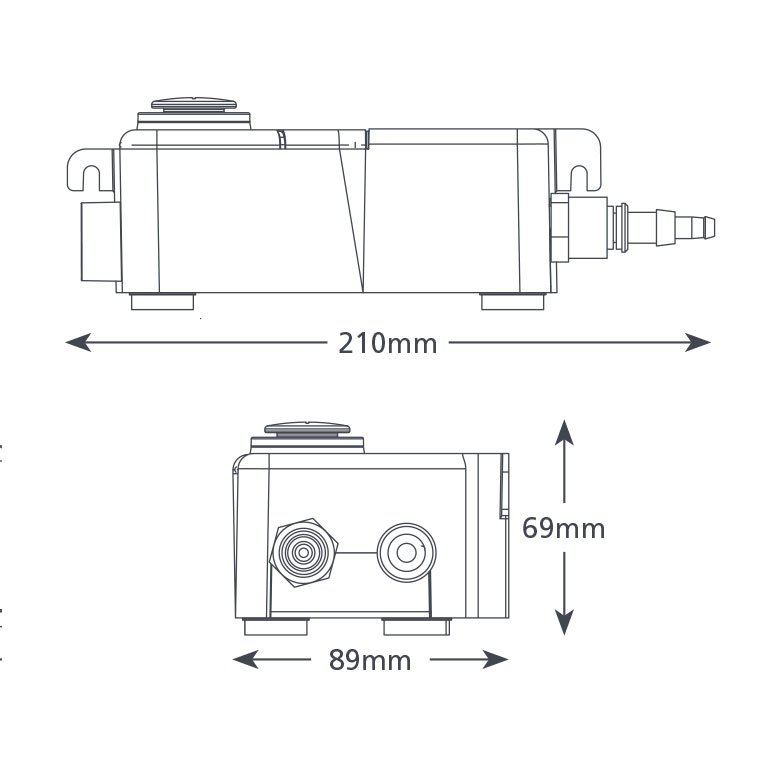

• Dimensions: 210mm (L) x 89mm (W) x 69mm (H)

• Weight: 0.57 kg

• Power Supply: 230 VAC, 50-60Hz, 0.1A

• IP Protection: IP65

• Inlets/Outlets: x2 22mm, 12mm, 27mm Inlets / 6mm & 10mm Outlets

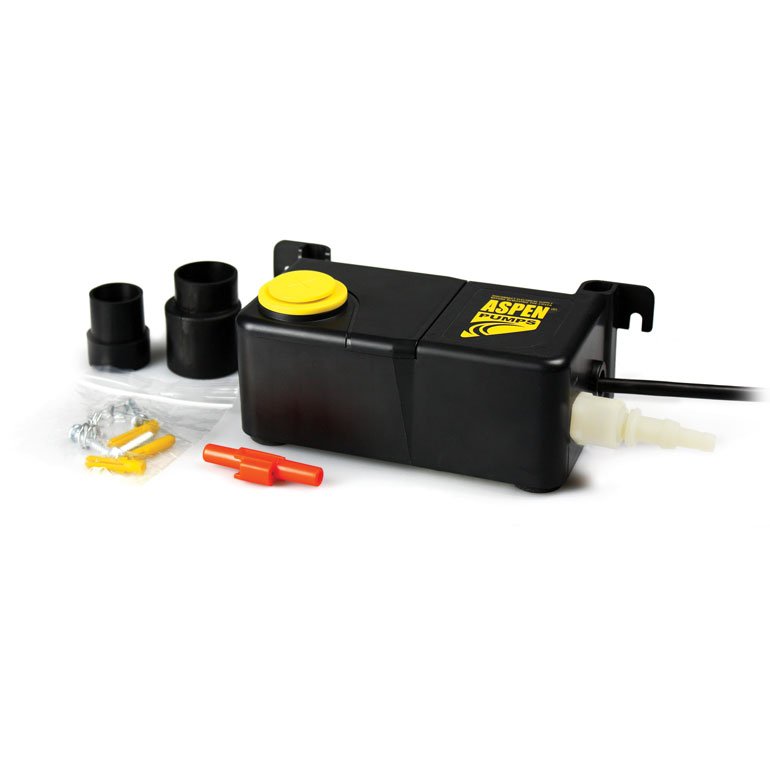

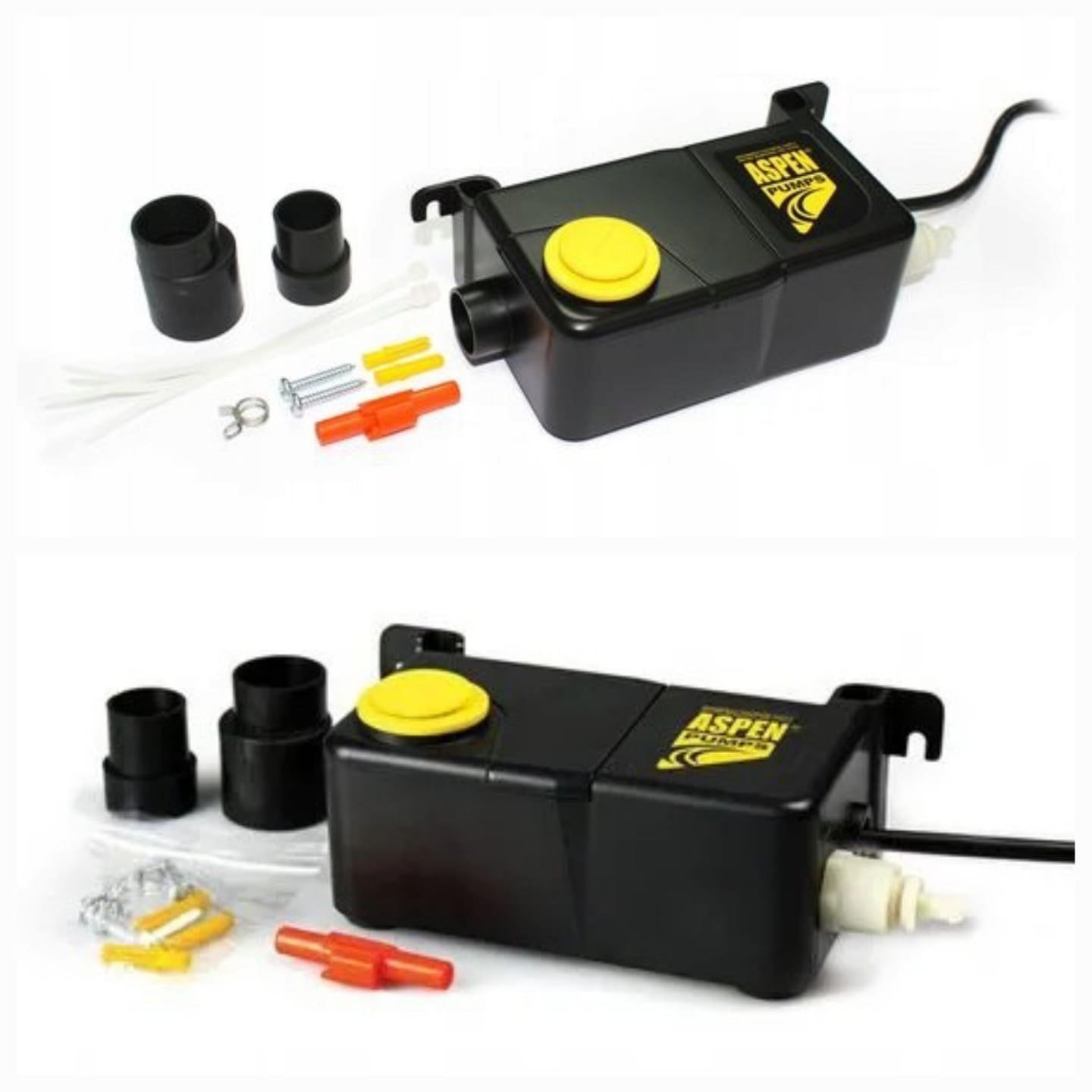

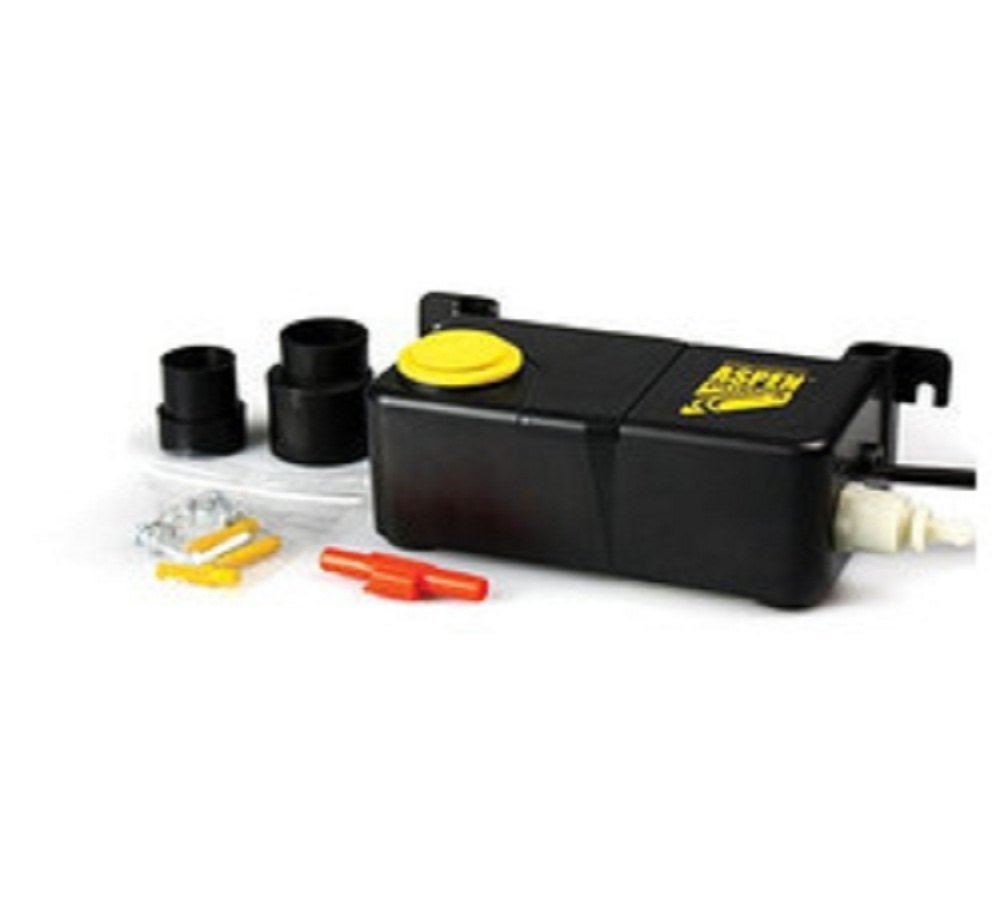

In the Box: Your package includes the Mini Tank pump (with a hard-wired 1m power cable), x2 Rubber adaptors (21.5mm & 31mm), an anti-siphon device, a complete fixing kit, and an installation manual.
