Aspen Mini Blanc Pump

Streamline your HVAC installations with the Aspen Pumps Mini Blanc Condensate Removal Pump. Specifically designed with an ‘ultra-quick fit’ mechanism, this compact pump mounts directly and discreetly beneath high wall indoor split units. It is the perfect solution for commercial environments where both aesthetics and easy access for future maintenance are top priorities.

The Mini Blanc combines a sleek, low-profile design with highly efficient water removal capabilities. One of its standout features is the clear, removable 0.24L reservoir, which allows technicians to quickly inspect and maintain the pump without dismantling the entire setup. Operating at an ultra-quiet 21 dB(A), it works silently in the background, making it ideal for offices, meeting rooms, and quiet commercial spaces.

Key Features & Advantages:

• Ultra-Quick to Fit: Engineered for fast and hassle-free installation directly beneath the AC unit.

• Compact & Discreet: Its sleek white casing blends seamlessly with standard high wall indoor units.

• Clear Removable Reservoir: Makes routine inspection, cleaning, and maintenance incredibly easy.

• Ultra-Quiet Operation: Runs at just 21 dB(A) at 1 meter, ensuring no noise disruption.

• Built-in Safety: Equipped with a 3.0A normally closed safety switch and thermal protection to prevent overheating or water overflow.

Suitability & Applications: This pump is highly recommended for cooling systems up to 16kW / 54,000 Btu/h. It is perfectly suited for:

• High wall mini-split systems

• Perfect for… Commercial use where easy maintenance and discreet placement are key.

Technical Specifications:

• Max. Flow Rate: 12 L/h @ 0 head

• Max. Recommended Head: 10 meters

• Tank Capacity: 0.24 Litres

• Dimensions: 182mm (W) x 115mm (H) x 55mm (D)

• Weight: 0.46 kg

• Power Supply: 230 VAC, 0.11A, 19W, 50/60Hz

• Connections: 20mm inlet, 6mm outlet

• IP Protection: IP21

• Self Priming: Yes

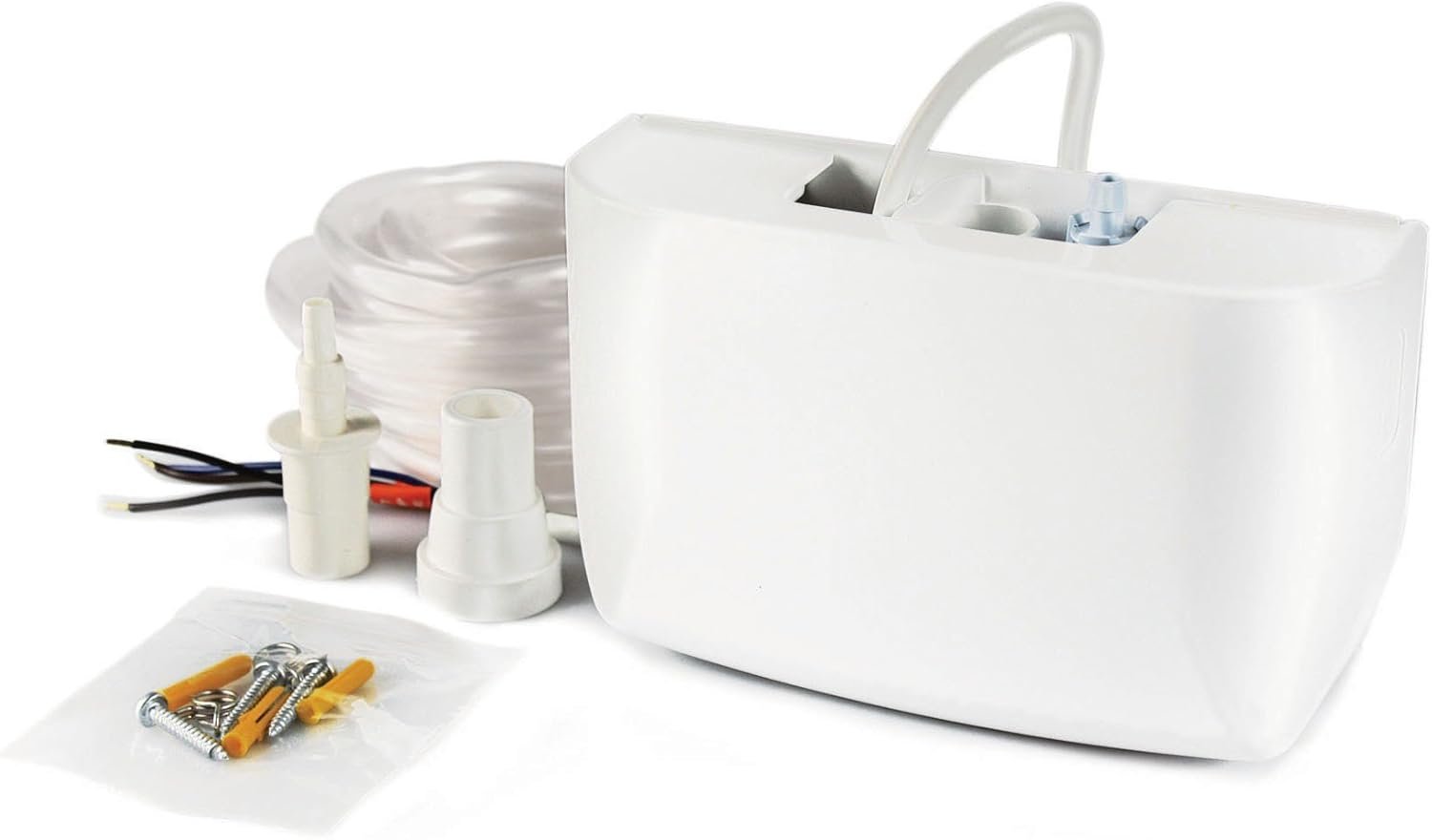

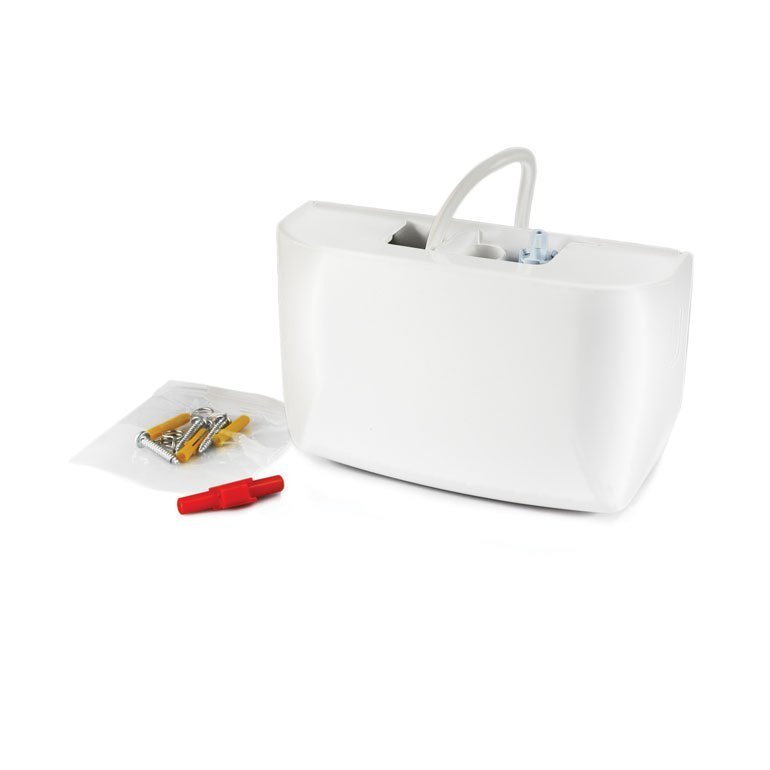

In the Box: The package comes complete with everything needed for installation: the Mini Blanc pump (including a hard-wired 1m power cable), an anti-siphon device, a drain connector kit, a fixing kit, and an installation manual.
