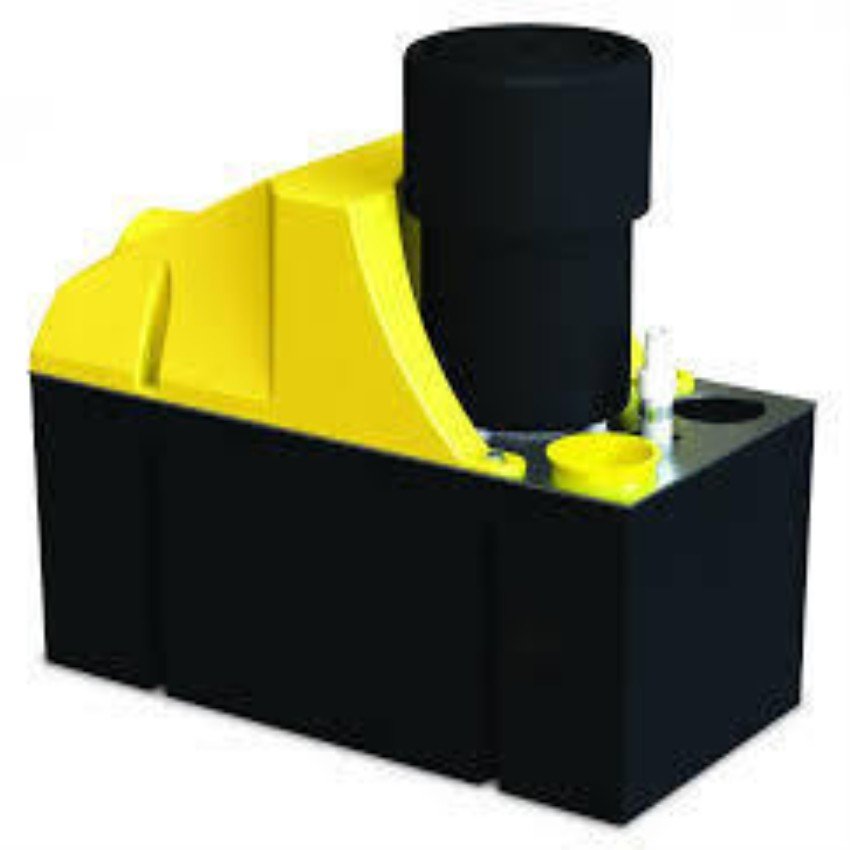

Aspen Heavy Duty 6 & 10 Pump

Equip your commercial and industrial spaces with the Aspen Heavy Duty 6 & 10 Condensate Removal Pumps, specifically engineered to tackle high-demand HVAC systems. Built to withstand the toughest commercial environments, these heavy-duty tank pumps seamlessly combine extreme power, unwavering reliability, and long-lasting durability. When your air conditioning systems, dehumidifiers, or air handling units produce large volumes of condensation, this pump ensures continuous, safe, and efficient water removal without breaking a sweat.

Unlike standard pumps, the Heavy Duty series is designed with a massive 4-litre tank capacity and operates on a continuous rating, ensuring it can handle non-stop heavy loads. It features an integrated high-level safety switch and a non-return valve, guaranteeing that your commercial property remains safe from potential overflows and water damage.

Two Powerful Models for Different Needs: This series offers two specific variations to match your exact commercial requirements. Ensure you select the right option for your HVAC setup:

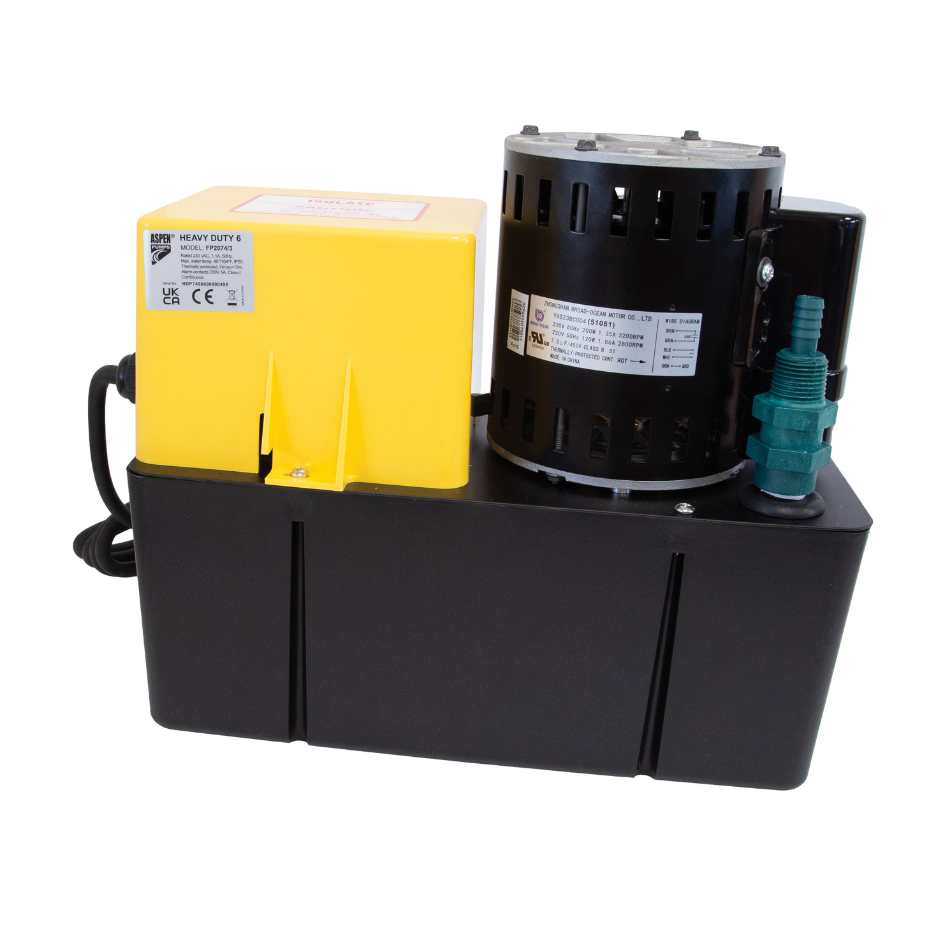

• Heavy Duty 6 (HD6): Delivers a robust maximum flow rate of 900 L/h with a maximum recommended head of 6 meters. Perfectly suited for cooling units up to 1200 kW (4m Btu/h).

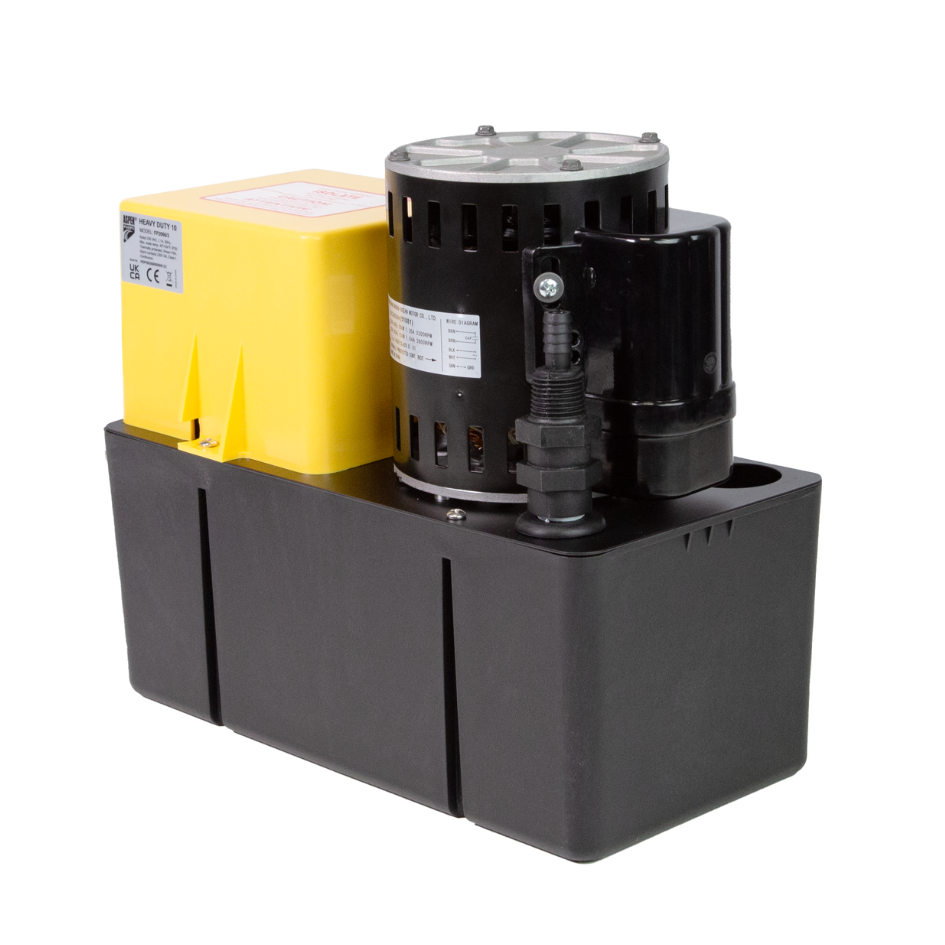

• Heavy Duty 10 (HD10): Steps up the power with an incredible maximum flow rate of 1070 L/h and a maximum recommended head of 9 meters. Designed for massive systems up to 1460 kW (4.9m Btu/h).

Key Features & Advantages:

• Exceptional Flow Rates: Capable of handling massive water volumes rapidly, making it the go-to choice for heavy industrial use.

• Large Capacity Tank: The 4-litre built-in tank accommodates huge surges of water and reduces the frequency of pump cycles, extending the motor’s lifespan.

• Built-in Safety Mechanisms: Includes a 5.0A normally closed high-level safety switch to prevent flooding and a non-return valve to stop water backflow.

• Industrial-Grade Durability: Crafted specifically for the toughest commercial environments where standard condensate pumps would fail.

• Straightforward Installation: Designed with the installer in mind for a quick and easy setup process despite its heavy-duty nature.

Suitability & Applications: The Heavy Duty series is the perfect solution for managing large volumes of water. It is highly recommended for:

• Heavy-duty Air Handling Units (AHUs)

• Large-scale commercial Dehumidifiers

• High-capacity commercial and industrial air conditioning systems

Technical Specifications:

• Dimensions: 305mm (Length) x 152mm (Width) x 270mm (Height)

• Weight: 5.2 kg

• Sound Level: 64 dB(A) @ 1 meter

• Power Supply: 230 VAC, 50Hz, 1.1A

• Max Water / Ambient Temp: 40°C / 104°F

• Connections: 40mm inlet, 10mm outlet

• IP Protection Rating: IP20

• Class: I Appliance

In the Box: Your package includes either the Heavy Duty 6 or Heavy Duty 10 pump, a hard-wired 2-meter power cable, and a comprehensive installation manual.
