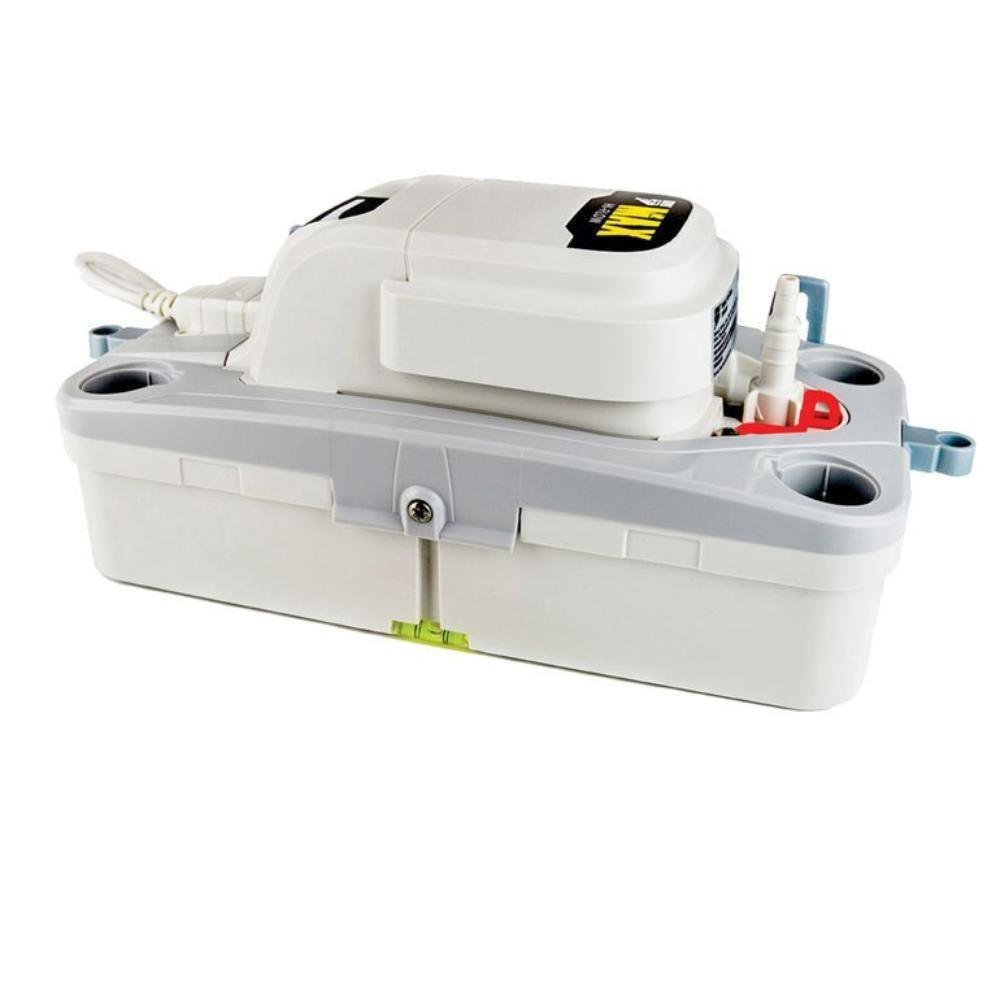

Aspen Max High flow Pump

The Aspen Max Hi-Flow Tank Pump is a premium condensate removal solution designed for demanding HVAC and refrigeration applications. Known for its high build quality and excellent performance, this pump delivers efficient condensate drainage while maintaining one of the lowest noise levels in its class.

With a maximum flow rate of 550 L/h and a maximum recommended head of 5 meters, the Max Hi-Flow pump ensures reliable operation for systems producing significant condensate volumes. Its 1.7-liter tank capacity allows effective storage and discharge of condensate water.

This pump operates on 230 VAC power supply and features IP24 splash-proof protection, making it one of the safest and most durable tank pumps available. The unit also includes thermal protection and a safety switch, helping prevent equipment damage and ensuring safe operation.

Designed with multiple inlet options and integrated non-return valve (NRV), the pump allows flexible installation across a wide range of HVAC setups. Its quiet operation at 44 dB(A) makes it suitable for commercial environments where low noise is important.

The Max Hi-Flow pump is suitable for HVAC systems up to 733 kW (2.5 million BTU/h) and is widely used in air conditioning systems, air handling units, and refrigeration equipment.

Key Specifications

• Brand: Aspen

• Maximum Flow Rate: 550 L/h

• Maximum Recommended Head: 5 m

• Tank Capacity: 1.7 L

• Noise Level: 44 dB(A)

• Power Supply: 230 VAC, 0.8A, 50 Hz

• Maximum Unit Output: 733 kW / 2.5M BTU/h

• Maximum Water Temperature: 40°C / 104°F

• IP Protection: IP24 (Splash Proof)

• Inlets: 4 × 21–27 mm

• Outlets: 6 mm & 10 mm

• Safety Switch: 3.0A Normally Closed

• Thermal Protection: Yes

• Rated Operation: Non-continuous

• Availability: In Stock

Key Features

• High flow rate condensate removal

• Low noise operation (44 dB)

• IP24 splash-proof protection for safe operation

• Built-in non-return valve (NRV)

• Multiple inlet connections for flexible installation

• Thermal protection and safety switch for system safety

• Reliable performance in commercial HVAC applications

Applications

• Air Conditioning Systems

• Air Handling Units (AHUs)

• Refrigeration Systems

• Commercial HVAC Installations

• Industrial Cooling Equipment
