Cased Spring Mount Vibration Isolators

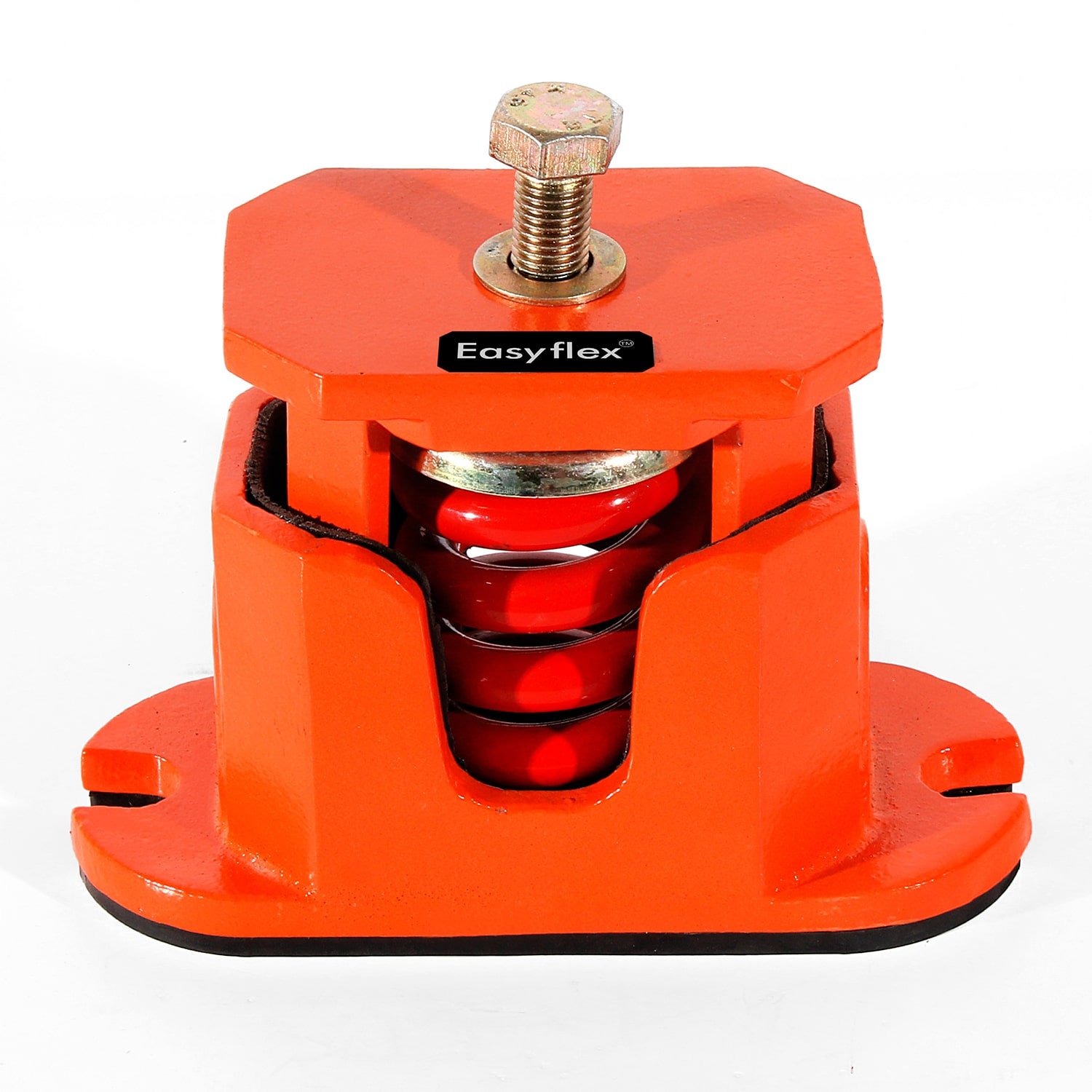

Easyflex Cased Mount Isolators are engineered to deliver superior vibration isolation and load management for heavy-duty mechanical equipment. Designed with high deflection, color-coded springs housed داخل robust telescopic cast iron casings, these isolators provide exceptional strength, stability, and long-term durability for demanding industrial and HVAC applications.

The isolators feature precision-engineered springs that are color-coded for easy identification, simplifying selection, installation, and maintenance प्रक्रियाएँ. These springs are powder-coated for enhanced protection against corrosion and wear, ensuring reliable performance even in challenging environments. With a load capacity of up to 5000 kg and deflection capabilities up to 25 mm, these mounts are suitable for a wide range of heavy equipment installations.

A key highlight of the Easyflex Cased Mount design is its telescopic housing structure, which not only protects the spring but also enhances horizontal stability. This unique design ensures high load-bearing capacity while preventing unwanted movement or misalignment during operation. Additionally, all mounts are designed with approximately 50% overload capacity, providing an extra margin of safety and reliability.

The isolators are equipped with an external leveling arrangement that allows precise adjustment during installation. This feature can compensate for full static deflection, ensuring accurate alignment and optimal performance of the supported equipment. The inclusion of slots in the bottom plate allows secure bolting to the structure, further enhancing installation stability.

To improve operational performance, the inner walls of the lower casing are fitted with resilient rubber snubbers. These play a crucial role in guiding the top casing smoothly, preventing binding, and limiting lateral movement caused by start-up, shutdown, or external forces such as wind loads. They also eliminate the possibility of metal-to-metal contact, thereby preventing isolator short-circuiting and maintaining effective vibration isolation.

Additional noise control is achieved through neoprene inserts beneath the springs and a 6 mm thick ribbed base pad. These components act as noise breaks, effectively reducing high-frequency vibrations that might otherwise transmit into the building structure. This makes the isolators particularly effective in environments where both vibration and noise control are critical.

For optimal performance, it is recommended that the mountings be adjusted so that the upper housing maintains a clearance of at least 6 mm and not more than 12 mm from the lower housing. This ensures proper functioning and longevity of the isolator.

Available in 4 models and 26 load ranges, Easyflex Cased Mount Isolators offer flexibility to suit various application requirements. Their combination of high load capacity, advanced vibration isolation, noise reduction features, and durable construction makes them an ideal solution for heavy machinery, HVAC systems, and industrial equipment installations.

Design Features:

• High deflection, color-coded springs for easy identification
• Powder-coated springs for corrosion resistance
• Load capacity up to 5000 kg
• Deflection up to 25 mm (±15% tolerance at rated load)
• Approximately 50% overload capacity for added safety
• Telescopic cast iron housing for protection and stability
• External leveling arrangement for precise adjustment
• Rubber snubbers to prevent binding and control lateral movement
• Neoprene inserts and ribbed base pad for enhanced noise isolation
• Bottom plate slots for secure structural mounting
• Available in 4 models with 26 load ranges
