Test Point

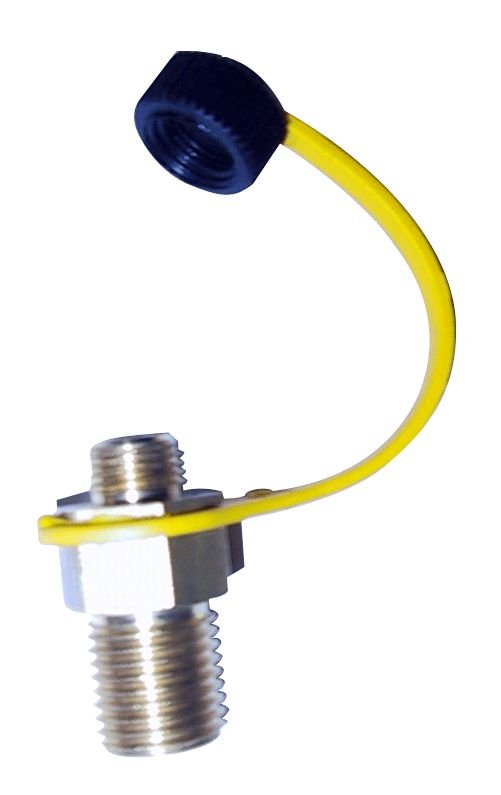

The Anergy Temperature & Pressure Test Plug is a practical solution used for measuring temperature and pressure in HVAC and hydronic water systems. It allows technicians to connect portable thermometers or pressure gauges to check system parameters during commissioning, maintenance, or operation.

Manufactured with a durable brass body, the test plug ensures long service life and reliable performance. It is equipped with nitrile sealing bushes that provide a secure and leak-proof seal when measuring system pressure and temperature.

The plug features a 1/4 inch connection size, making it compatible with common HVAC testing equipment. It can operate at a maximum pressure of 16 bar (optional up to 20 bar) and supports working temperatures up to 110°C, making it suitable for chilled water, hot water, and other non-corrosive fluid systems.

This device allows multiple system points to be monitored using a single portable gauge or thermometer, reducing equipment costs and ensuring consistent measurement accuracy.

Key Features

• Durable brass body construction

• Nitrile sealing bushes for leak-proof operation

• 1/4 inch connection size

• Suitable for water and non-corrosive fluids

• Maximum operating pressure: 16 bar (20 bar optional)

• Maximum working temperature: 110°C

Benefits

• Enables temperature and pressure measurement during HVAC commissioning and operation

• Allows multiple testing points using one or few gauges/thermometers

• Reduces measurement variations caused by calibration differences

• Helps prevent equipment failures through proper monitoring

• Cost-effective and economical solution
