Side stream Filtration

The Anergy Hydrocyclone Separator System is an advanced solution designed to remove unwanted solid particles from condenser water in cooling tower systems. It operates on the centrifugal separation principle, where water is forced into a spiral motion, pushing heavier particles downward into a separation chamber for removal.

This system achieves up to 98% separation efficiency for particles up to 40 microns with a specific gravity of 2.6, ensuring effective removal of sediments and solids that can damage equipment or reduce cooling efficiency.

The system includes sweeper jets that continuously sweep the cooling tower basin to remove settled solids and prevent accumulation. It is equipped with a close-coupled end suction centrifugal pump featuring a cast iron body, bronze impeller, and TEFC motor, ensuring reliable and durable performance.

For automated operation, the system includes an automatic purge mechanism with an electrically actuated spring-return ball valve. A microprocessor-based control panel with display allows easy monitoring and programming, including purge timer functionality and HOA switch operation.

The control panel also includes essential protections such as motor short-circuit and overload protection, pump dry-run protection, and BMS compatibility for integration with building management systems.

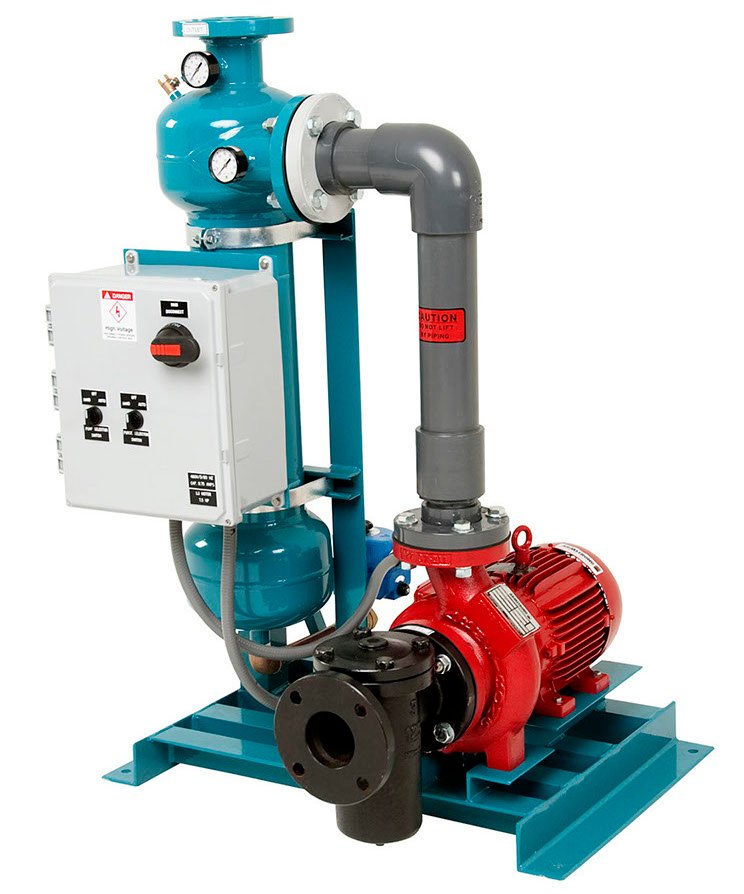

All major components—including the end suction pump, hydrocyclone separator, suction guide, interconnecting piping, and IP55 control panel—are factory mounted on a compact steel frame, allowing easy installation and reliable operation.

Key Features

• Works on centrifugal separation principle

• Removes unwanted solids from condenser water

• 98% separation efficiency for particles up to 40 microns (SG 2.6)

• Sweeper jets to remove settled solids from cooling tower basin

• End suction centrifugal pump with cast iron body and bronze impeller

• Automatic purge system with electrically actuated spring-return ball valve

• Microprocessor-based control panel with display

• Programmable purge timer with HOA switch

• Motor short circuit, overload, and dry run protection

• BMS compatible control system

• All components mounted on a compact steel frame

Benefits

• Prevents accumulation of solids in cooling tower basin

• Reduces manual cleaning and maintenance requirements

• Minimizes cooling tower downtime

• Maintains high thermal efficiency of heat transfer surfaces

• Reduces under-deposit corrosion and biological growth

• Extends cooling tower basin life and system reliability
