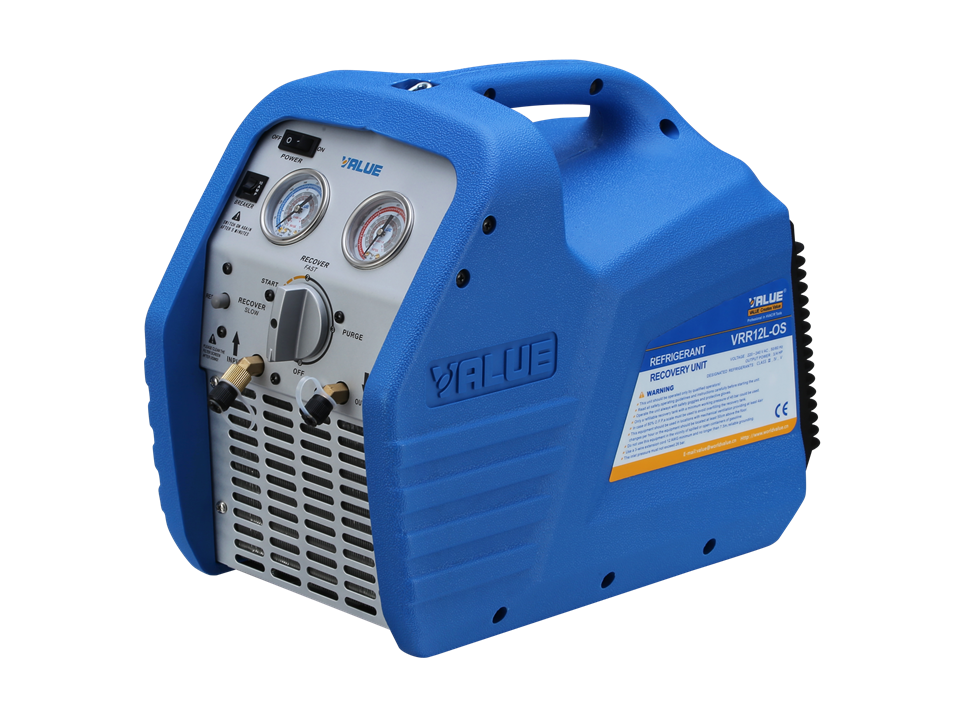

Oil Separator VRR12L-OS-R32

The VALUE Refrigerant Recovery Unit with Oil Separator is a high-performance and compact solution designed for fast and efficient recovery of HFC and HCFC refrigerants in HVAC and refrigeration systems. Engineered for professional use, it ensures safe and reliable refrigerant handling during servicing and maintenance operations.

Equipped with an integrated oil separator, the unit effectively separates oil during the recovery process, improving system efficiency and protecting the internal components. Its powerful oil-less, air-cooled piston compressor delivers high recovery speeds across vapor, liquid, and push/pull modes, reducing downtime and increasing productivity.

The unit features both high and low-pressure gauges for accurate monitoring, along with a manual reset function and a single control knob for simple and user-friendly operation. It also includes an O.F.P. hose for safe connection with cylinder overfill sensors, enhancing operational safety.

Supporting a wide range of refrigerants across multiple categories, including R134a, R22, R404A, R410A, R32, and more, this recovery unit is highly versatile and suitable for modern HVAC systems.

With a robust yet portable design, the unit is easy to carry and use on-site. It comes complete with essential accessories such as a shoulder strap, dry filter, and hoses, making it a ready-to-use solution for technicians.

Key Features

• Fast and efficient refrigerant recovery
• Built-in oil separator for improved performance
• Oil-less, air-cooled piston compressor
• High and low-pressure gauges for monitoring

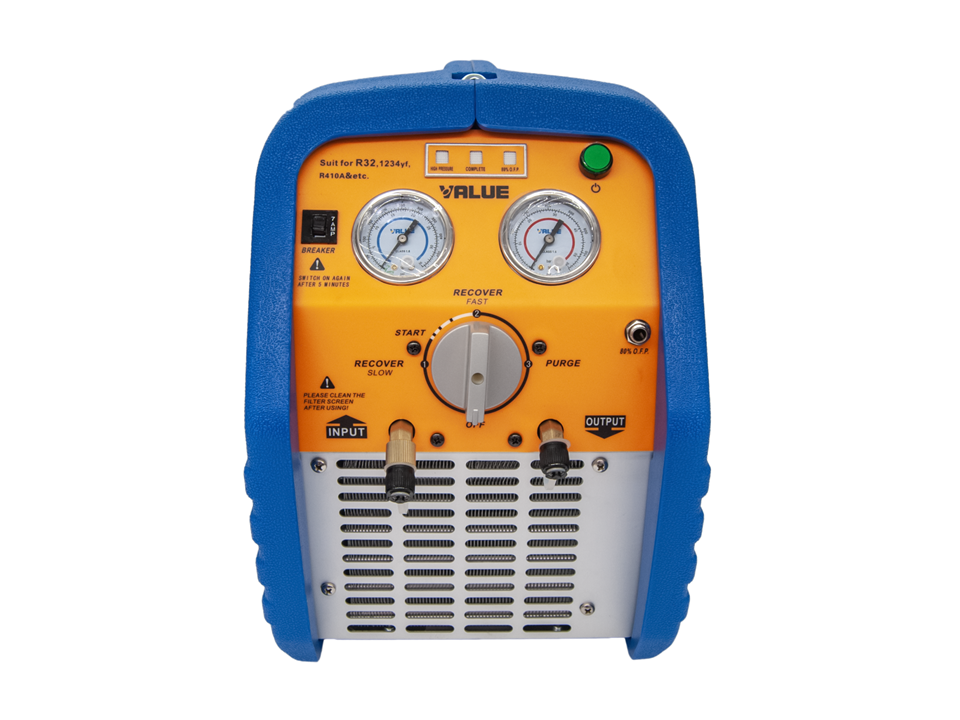

• Easy one-knob operation
• Manual reset function
• Supports multiple refrigerants
• Includes O.F.P. hose for safety

Product Specifications

• Brand: VALUE
• Type: Refrigerant Recovery Unit
• Refrigerant Compatibility:
  • Category III: R-12, R-134a, R-401C, R-500, R1234yf
  • Category IV: R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-411A, R-411B, R-412A, R-502, R509
  • Category V: R-402A, R-404A, R-407B, R-410A, R-507, R-32
• Oil Separator: Yes
• Power Supply: 230V / 50 Hz
• Motor Power: 0.75 HP / 0.55 kW
• Motor Speed: 1450 rpm
• Max Current: 4A
• Compressor: Oil-less, Air-cooled, Piston Type
• Safety Shut-off: 38.5 bar / 3850 kPa (558 psi)

Recovery Rates:

• Category III (Vapor / Liquid / Push-Pull): 0.20 / 1.60 / 4.60 kg/min
• Category IV (Vapor / Liquid / Push-Pull): 0.25 / 1.80 / 5.60 kg/min
• Category V (Vapor / Liquid / Push-Pull): 0.25 / 2.20 / 6.30 kg/min
• Operating Temperature: 0°C – 40°C
• Dimensions: 450 x 250 x 355 mm
• Weight: 14.2 kg

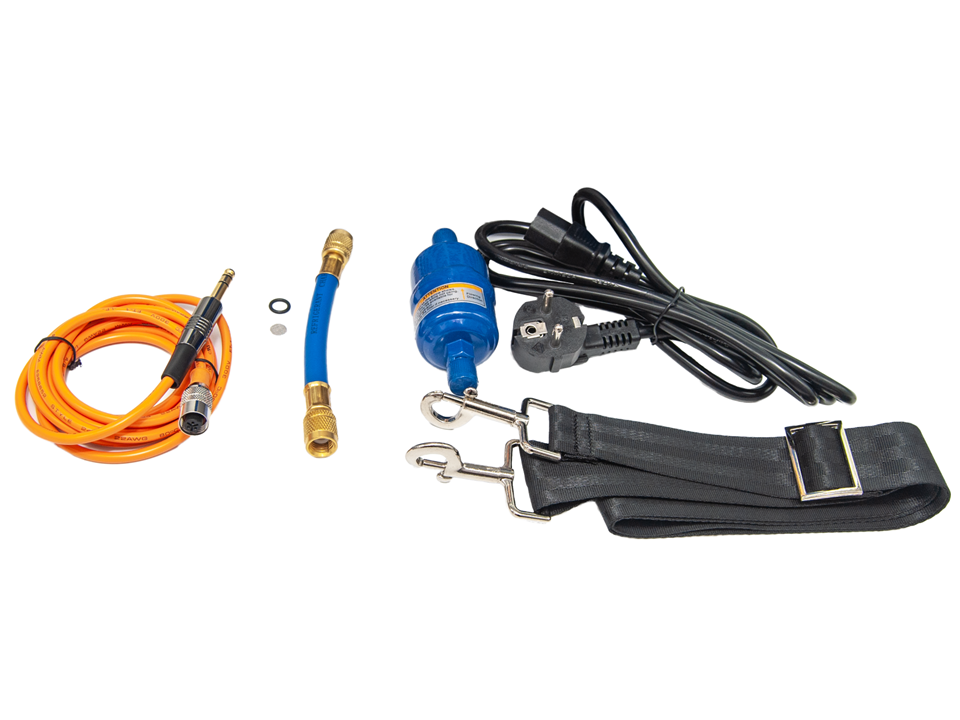

Included Accessories:

• Shoulder strap
• Dry filter
• 15 cm hose (¼” x ¼”)
• O.F.P. hose
• Availability: In Stock

Applications

• Refrigerant recovery in HVAC systems
• Air conditioning servicing
• Refrigeration maintenance
• Gas transfer and system evacuation

Benefits

• High-speed recovery saves time
• Ensures safe and efficient operation
• Wide refrigerant compatibility
• Easy to use with simple controls
• Durable and portable design
