Manifold, Four Valve Aluminum R-410A/R-22/R-404A/R-134A

The Uniweld Aluminum Manifold with 3-1/8″ NPF® Gauges is a high-performance HVAC tool engineered for efficient charging, evacuation, and testing of air-conditioning and refrigeration systems. Built with an anodized aircraft-grade aluminum block body, it offers excellent durability while remaining lightweight for easy handling.

Featuring a 4-port design, this manifold allows technicians to perform multiple operations without changing or removing hoses, saving time and improving workflow efficiency. The inclusion of a 3/8″ SAE port significantly enhances vacuum capacity, enabling faster evacuation of systems.

The manifold is equipped with large 3-1/8″ NPF® (No Pointer Flutter) gauges, ensuring stable, accurate readings with color-coded refrigerant scales and protective boots for easy identification. An optical sight glass is also integrated for clear monitoring of refrigerant flow during operation.

Designed for precision and comfort, it includes durable brazed brass T-handles that provide smooth and accurate control. The unit comes with a complete 5 ft. hose set, including Soft Magic® barrier hoses with EZ-Turn anti-blowback fittings, ensuring safe and efficient refrigerant handling.

Key Features

• Anodized aircraft-grade aluminum body for durability

• 4-port design for charging, evacuation, and testing without hose removal

• 3/8″ SAE port for increased vacuum capacity and faster evacuation

• 3-1/8″ NPF® gauges with no pointer flutter

• Optical sight glass for refrigerant monitoring

• Brazed brass T-handles for smooth and precise control

• Color-coded scales and protective boots

• Soft Magic® barrier hoses with EZ-Turn anti-blowback fittings

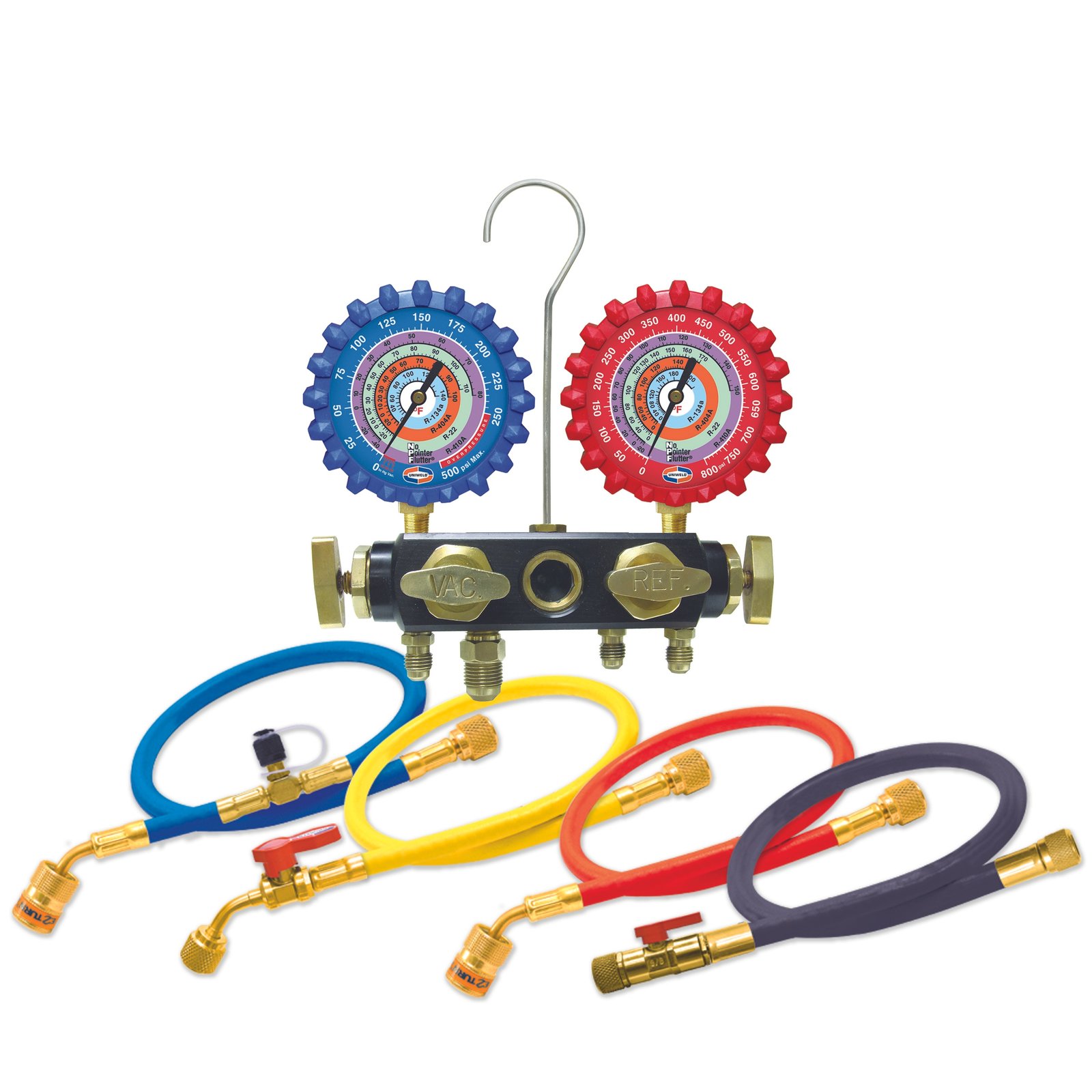

Included Hose Set

• 5 ft. Red EZ-Turn Hose

• 5 ft. Blue EZ-Turn Hose with 1/4″ Male Flare “T” Fitting

• 5 ft. Yellow Ball Valve Hose

• 5 ft. Black 3/8″ Ball Valve Hose

Applications

• HVAC system charging and evacuation

• Refrigeration servicing and maintenance

• Vacuum testing and system diagnostics

• Commercial and residential AC installation

Benefits

• Saves time with no hose change required

• Faster evacuation with enhanced vacuum capacity

• Accurate and stable pressure readings

• Improved safety and control during operation
